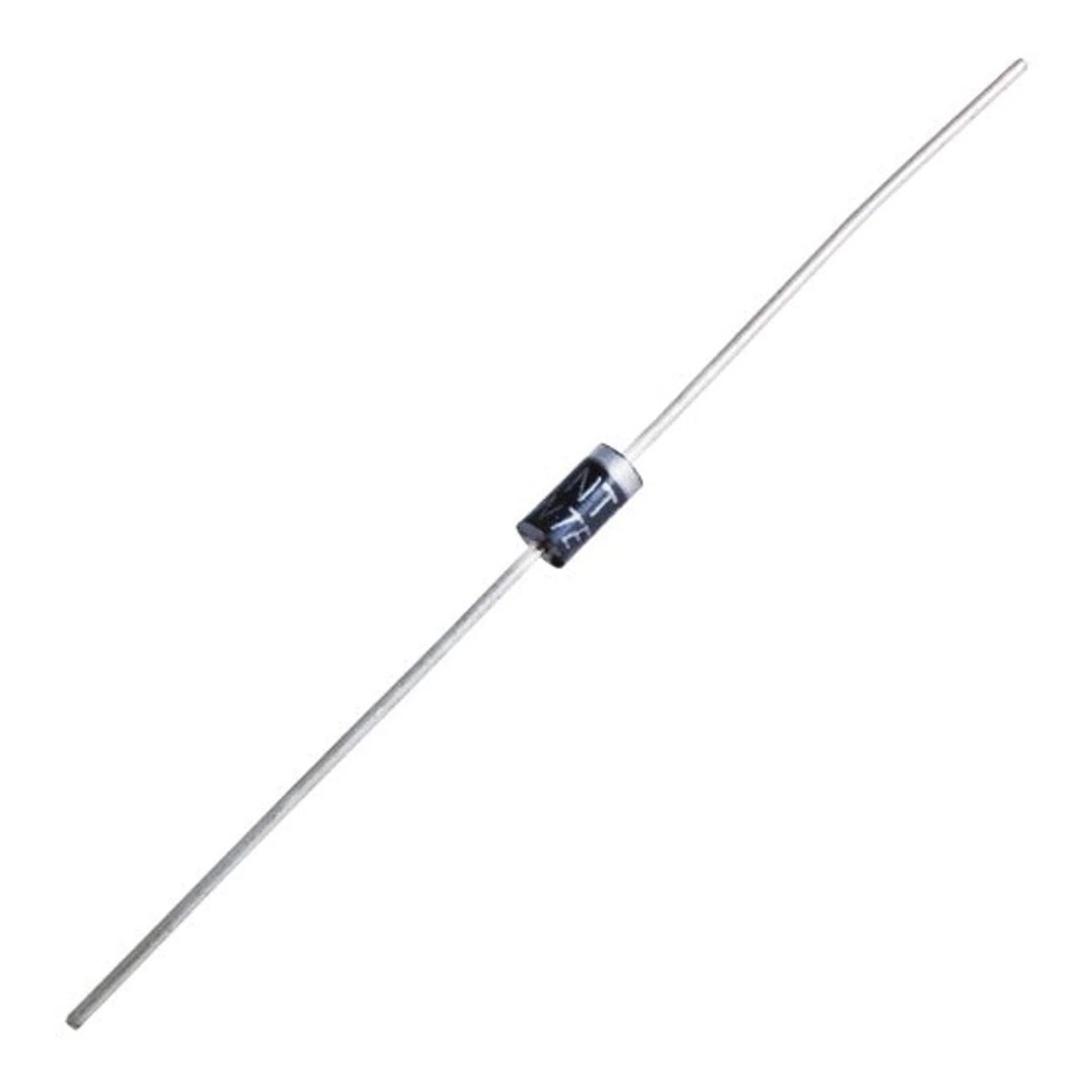

NTE Electronics NTE116 General Purpose Silicon Rectifier 600V 1A DO−41 Type
HomeStore

NTE Electronics NTE116 General Purpose Silicon Rectifier 600V 1A DO−41 Type

NTE Electronics NTE116 General Purpose Silicon Rectifier 600V 1A DO−41 Type

$0.99
NTE Electronics NTE116 General Purpose Silicon Rectifier 600V 1A DO−41 Type—
$0.99

The Story

The NTE116, a DO−41 type general purpose silicon rectifier from NTE Electronics, is perfect for low power and switching applications. With a 600V working peak reverse and DC blocking voltage, a 720V non-repetitive peak reverse voltage (halfwave, single phase, 60Hz), a 420V RMS reverse voltage, and a 30A non-repetitive peak surge current, this rectifier is suitable for a variety of uses.

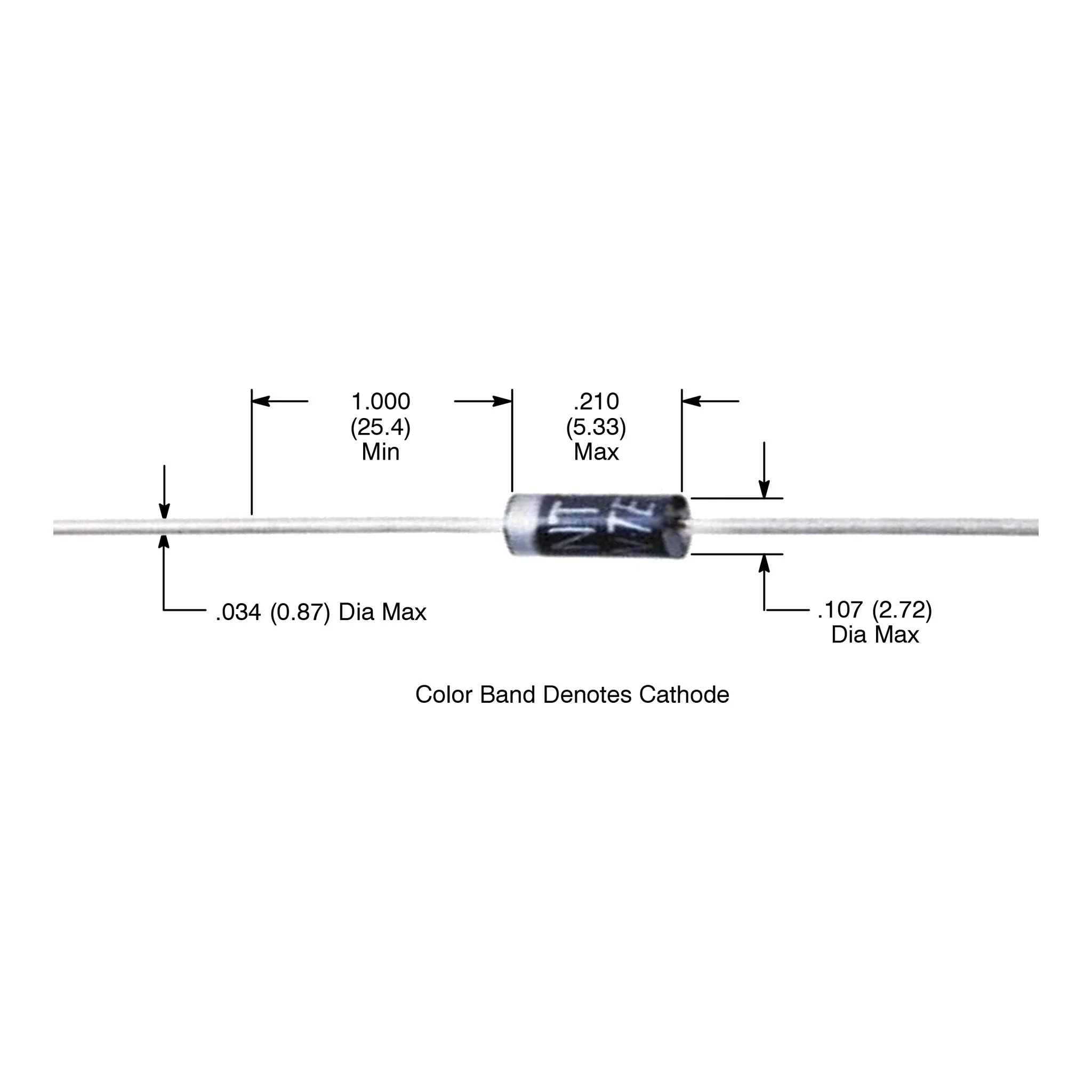

NTE Electronics NTE116 General Purpose Silicon Rectifier 600V 1A DO−41 Type - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

The NTE116, a DO−41 type general purpose silicon rectifier from NTE Electronics, is perfect for low power and switching applications. With a 600V working peak reverse and DC blocking voltage, a 720V non-repetitive peak reverse voltage (halfwave, single phase, 60Hz), a 420V RMS reverse voltage, and a 30A non-repetitive peak surge current, this rectifier is suitable for a variety of uses.
